main product photo
Helios - Innovative Hinges and Lift Systems for Cabinets

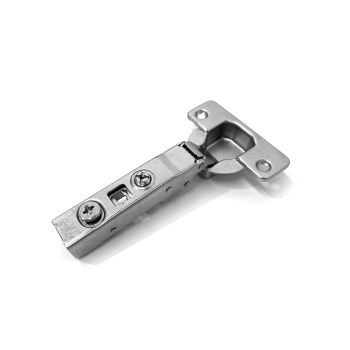

Helios hinge, 105 deg standard close, cr0/full overlay

Helios 105° standard close, full overlay hinge for fast & easy clip-on installation
Features:
Opening angle 105°, perfect for standard cabinets
Suitable for 15-22mm thick doors
Cup diameter 35mm, cup depth 11.5mm
Right / left adjustment ±2.5mm, depth adjustment via cam +3/-1mm
Choice of fixed or cam adjustable plate
Available in I, B and H-pattern

Details & Specifications

Helios hinge, 105 deg standard close, cr0/full overlay
Helios 105° standard close, full overlay hinge for fast & easy clip-on installation
Opening angle 105°, perfect for standard cabinets
Suitable for 15-22mm thick doors
Cup diameter 35mm, cup depth 11.5mm
Right / left adjustment ±2.5mm, depth adjustment via cam +3/-1mm
Choice of fixed or cam adjustable plate
Available in I, B and H-pattern

Specifications

  • Artia Part Helios 105 deg standard close
  • Brand Helios - Innovative Hinges and Lift Systems for Cabinets
  • Type Standard hinge
